A, use:

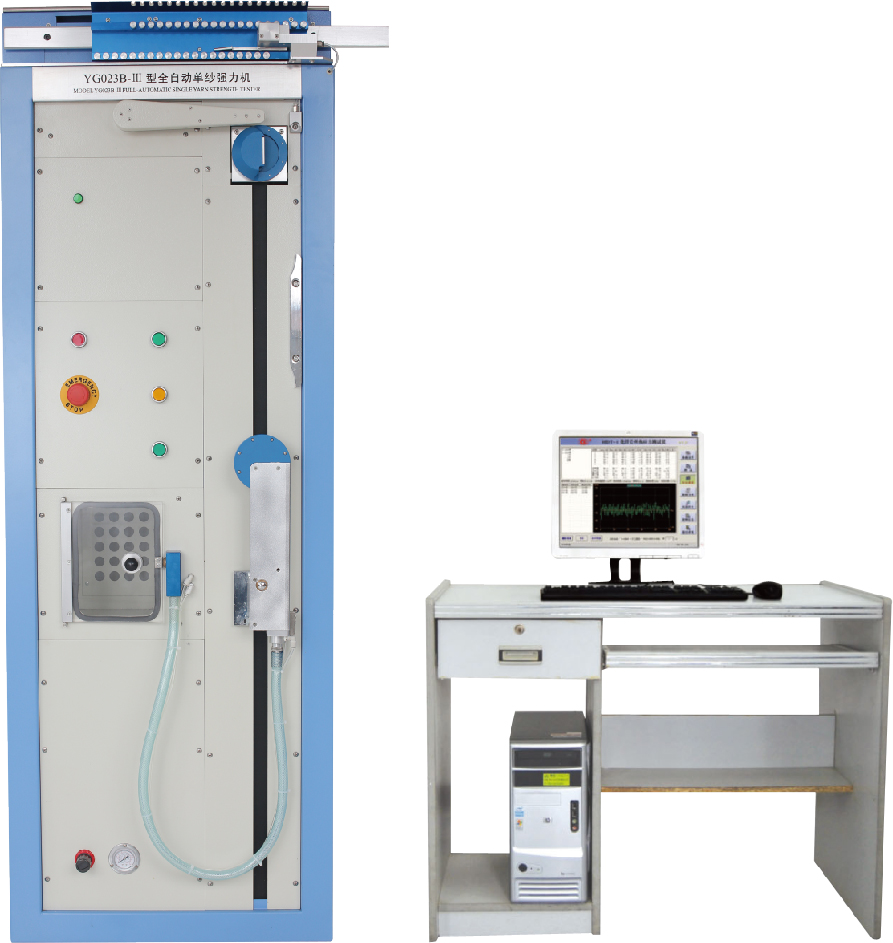

YG023B type electronic Single yarn tensile tester using SCM control, computer storage and processing, physical indicators for measuring single yarn or fiber breaking strength, elongation, tensile strength, elongation at break time and a strong curve. Selection of brand computers and printers, making data collection, calculation, output fully automated, and data export.
B, principle structure
Instrument testing principle of constant elongation (CRE). Instrument by the host, monitor, printer and compressed air in four parts. Force sensors measure strength, length measurement precision grating reach one hundred thousandth. Pneumatic manipulator plus pre-tension and wrap pipe sampling. Pneumatic vacuum residue collected yarn. Host built industrial control instrument box automated procedures.
C, Features
The product is a computer-controlled testing machine for measuring single physical indicators breaking strength, elongation, and time of the yarn Full-automatic, the machine uses WindowsXP operating system, forty spools test together, you can choose test statistical coverage, test data generated by the computer collation printing or storage can also be exported. YG023B type Full-automatic single tensile tester, test data is accurate, stable and reliable performance, easy to understand, easy to repair in time, the price of similar foreign products machine type 1/7, the majority of customers, the product since 1992 On the market, there are more than 500 users to use our plant products, the main users of Sichuan Vinylon Works, Jiangsu Yizheng Chemical fiber Group, Fujian Yongan Chemical Plant, Zhejiang 江雄盛 group, days spinning Holding Group, Yichang CCIB Shaoxing Commodity Inspection Bureau, Shanxi Xian Jian Bureau, Tianjin technical inspection bureau, Hubei Fiber Inspection Center, the National fibers and the like.
D, Main Technical Data
1, type style: constant traction (CRT)
2, load range: 0 ~ 50N or 0 ~ 100N.≤ ± 1%
3, sample holder distance: 50 ~ 500mm
4, tensile speed: 20 ~ 12000mm / min, <± 1%
5, clamping methods: Pneumatic
6, the sampling frequency: 50 ~ 1200 times / second
7, the whole machine power: 220V / 50Hz, 1KW
8, Outline size: L650 × W580 × H1730
E, applicable standards
ISO 2062 "Textiles - - Yarn - single yarn breaking force and elongation measurement"
GB / T 3916-1997 Textiles - Determination of yarn single yarn breaking force and elongation at break
GB / T 14344-2008 chemical fiber filament tensile properties
